Seismic Wave Types

ESS 314 Geophysics · University of Washington

Week 1, Lecture 4 · April 2, 2026

Marine Denolle

By the end of this lecture…

  • [LO-4.1] Classify P, S, Rayleigh, Love waves by particle motion, polarization, and medium
  • [LO-4.2] Explain physically why S-waves cannot travel in fluids — beyond stating μ=0\mu = 0
  • [LO-4.3] Compare VPV_P and VSV_S across Earth materials; identify the controlling properties
  • [LO-4.4] Apply the S–P time method to estimate earthquake distance from one seismogram
  • [LO-4.5] Distinguish Rayleigh from Love waves; explain why Love requires layering

One Earthquake, Three Arrivals

2011 Tōhoku M9.0 — recorded in Seattle 8,000 km away

The P-wave arrives first — fast, compressional, vertical motion

Then the S-wave — slower, shear, horizontal motion, larger amplitude

Then surface waves — slowest, largest, longest duration

Same source. Same Earth. Different wave physics.
(The same question has been asked — and answered — on the Moon and Mars.)

Why Multiple Wave Types?

The 3D elastic wave equation has two independent solutions:

ρ ∂2u∂t2=(λ+2μ) ∇(∇⋅u)−μ ∇×(∇×u)\rho\,\frac{\partial^2\mathbf{u}}{\partial t^2} = (\lambda+2\mu)\,\nabla(\nabla\cdot\mathbf{u}) - \mu\,\nabla\times(\nabla\times\mathbf{u})

Helmholtz decomposition u=∇ϕ+∇×ψ\mathbf{u} = \nabla\phi + \nabla\times\boldsymbol{\psi} splits this into:

∂2ϕ∂t2=VP2 ∇2ϕ∂2ψ∂t2=VS2 ∇2ψ\frac{\partial^2\phi}{\partial t^2} = V_P^2\,\nabla^2\phi \qquad\quad \frac{\partial^2\boldsymbol{\psi}}{\partial t^2} = V_S^2\,\nabla^2\boldsymbol{\psi}

The wave equation must produce exactly two body-wave families — elastic deformation has exactly two independent modes: volume change (P) and shape change (S).

P-waves: Longitudinal Motion

P = Primary · Compressional · Longitudinal

Particle motion parallel to propagation — alternating compression (C) and rarefaction (R)

Exists in solids and fluids — fastest seismic arrival

VP=λ+2μρ=K+43μρV_P = \sqrt{\frac{\lambda + 2\mu}{\rho}} = \sqrt{\frac{K + \tfrac{4}{3}\mu}{\rho}}

Think: a slinky pushed end-to-end. The compression pulse travels forward while individual coils oscillate back-and-forth along the slinky's axis.

P-wave Particle Motion

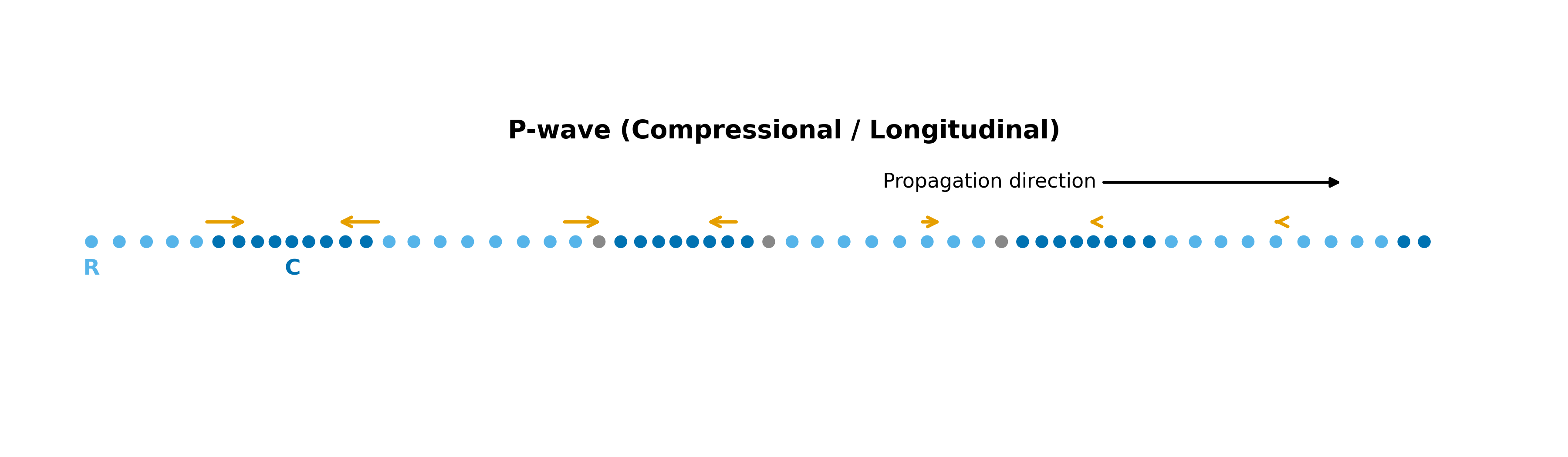

alt text: P-wave particle motion diagram showing alternating clusters of close-spaced dark blue dots labeled C for compression zones and widely-spaced sky-blue dots labeled R for rarefaction zones along a horizontal axis. Orange horizontal arrows show longitudinal displacement parallel to the green propagation arrow at the bottom. Particle motion is parallel to the direction of wave propagation.
Figure 4.1. P-wave: longitudinal (compressional) particle motion — particles move parallel to the ray. Python-generated — assets/scripts/fig_pwave_swave_motion.py

S-waves: Transverse Motion

S = Secondary · Shear · Transverse

Particle motion perpendicular to propagation — exists in solids only

VS=μρ(VS<VP always)V_S = \sqrt{\frac{\mu}{\rho}} \qquad (V_S < V_P \text{ always})

Two independent polarizations:

Polarization Plane of motion Mode conversion at interface?
SV Vertical plane of the ray Yes → converts to P or Rayleigh
SH Horizontal, ⊥ to ray plane No → generates Love waves only

S-wave Particle Motion

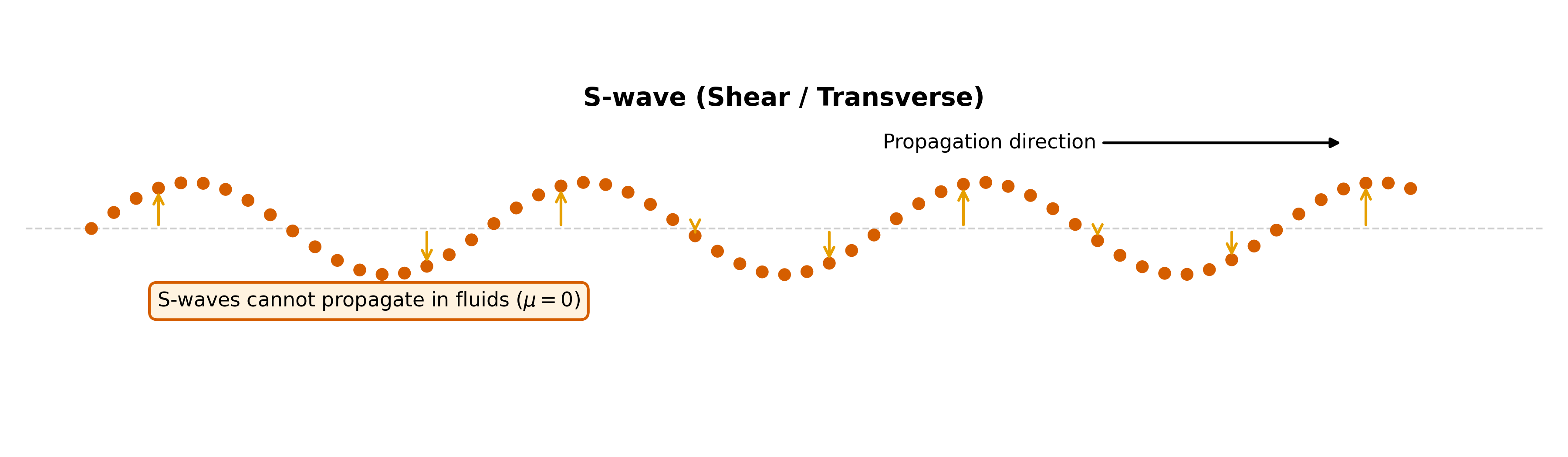

alt text: S-wave particle motion diagram showing vermilion particles displaced transversely above and below the equilibrium line in a sinusoidal pattern. Orange vertical arrows indicate displacement perpendicular to the green propagation arrow pointing to the right. A callout annotation states that S-waves cannot propagate in fluids because the shear modulus mu equals zero.
Figure 4.2. S-wave: transverse (shear) particle motion — particles move perpendicular to the ray. Python-generated — assets/scripts/fig_pwave_swave_motion.py

SV and SH Polarization Geometry

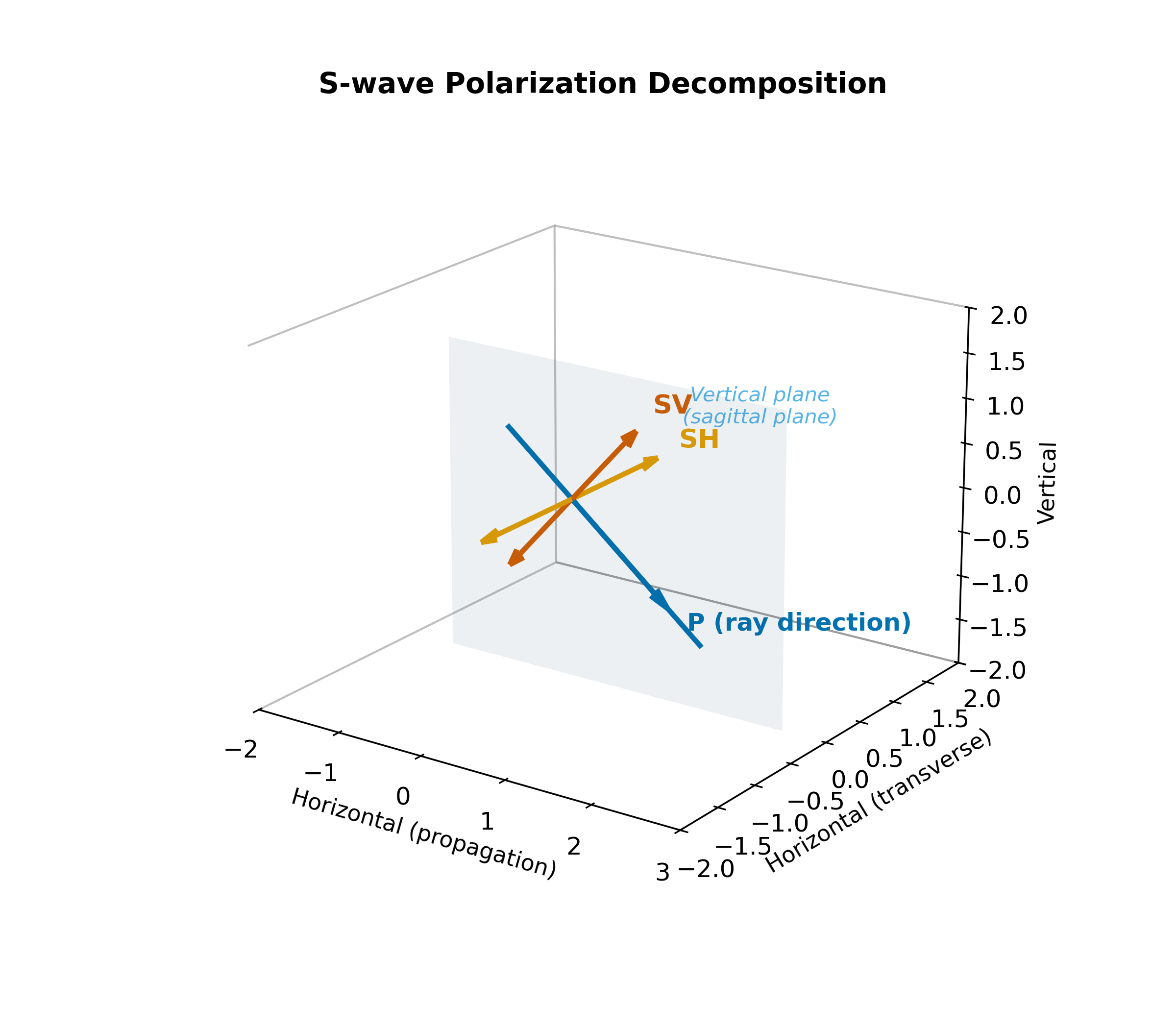

alt text: 3D perspective diagram showing a ray propagating to the right along the x-axis. A light blue vertical plane contains the ray and a vertical double-headed vermilion arrow labeled SV for vertical shear polarization. A horizontal double-headed amber arrow labeled SH points in the y-direction perpendicular to the ray. A label reads total S equals SV plus SH.
Figure 4.3. SV motion lies in the vertical plane of the ray; SH motion is horizontal and perpendicular to it. Python-generated — assets/scripts/fig_sv_sh_polarization.py

Why No S-waves in Fluids?

In a fluid: μ=0⇒VS=0\mu = 0 \Rightarrow V_S = 0 — but the formula is not the reason.

The physical argument:

  1. An S-wave requires the medium to shear-distort and elastically spring back
  2. In a fluid, molecules flow and rearrange rather than storing shear elastic energy
  3. No shear restoring force → no transverse oscillation propagates

Consequences in this course:

  • S-wave shadow zone → liquid outer core (Lectures 17–18)
  • For those interested in ocean physics: ocean basins are transparent to P-waves (hydroacoustic T-phases) but opaque to S
  • High VP/VSV_P/V_S in saturated sediments → direct fluid detection

Surface Waves: Trapped at the Free Surface

Free surface boundary (zero traction) allows guided waves that decay as e−kze^{-kz} and are dispersive:

Type Particle motion Speed Requires
Rayleigh Retrograde ellipse (P + SV) ≈0.92 VS\approx 0.92\,V_S Any elastic half-space
Love Horizontal SH only VS1<VL<VS2V_{S1} < V_L < V_{S2} Velocity layering

Both are slower than body waves and carry the largest amplitudes at teleseismic distances.

Rayleigh and Love Waves

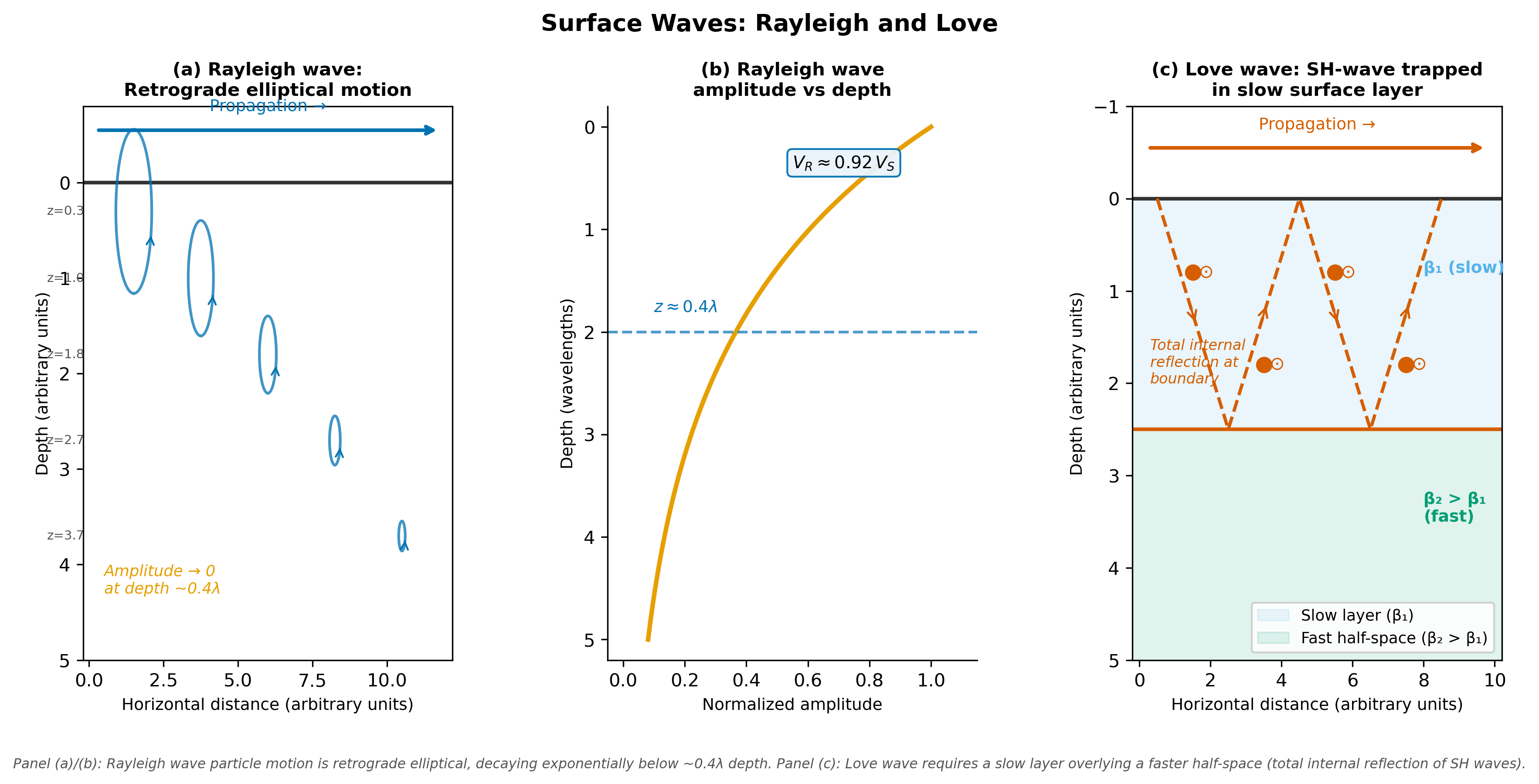

alt text: Three-panel figure. Left panel shows retrograde elliptical Rayleigh wave particle orbits at multiple depths, with large ellipses near the surface shrinking to small circles at depth. Center panel shows amplitude versus depth decaying exponentially with a dashed reference at 0.4 wavelength depth and label V_R approximately 0.92 V_S. Right panel shows Love wave cross-section with a slow sky-blue surface layer over a green fast half-space, dashed orange zigzag rays showing SH trapping by total internal reflection, and dot symbols for horizontal transverse particle motion.
Figure 4.4. Rayleigh: retrograde elliptical decay with depth (left, center). Love: SH trapped in slow surface layer by total internal reflection (right). Python-generated — assets/scripts/fig_surface_waves.py

Why Love Waves Need Layering

Rayleigh waves exist in any elastic half-space — they are a natural free-surface solution.

Love waves require a slow layer over a faster half-space (VS2>VS1V_{S2} > V_{S1}):

  1. SH waves hit the base at subcritical angles → total internal reflection
  2. Repeated reflections between the free surface and the interface constructively interfere
  3. Result: a trapped guided wave with purely horizontal SH particle motion

A homogeneous half-space has Rayleigh but not Love waves — observing Love waves requires a layered Earth.

For those interested in planetary science: NASA's InSight used surface wave dispersion from marsquakes to map the Martian crustal layering.

Seismic Wave Speeds Across Earth Materials

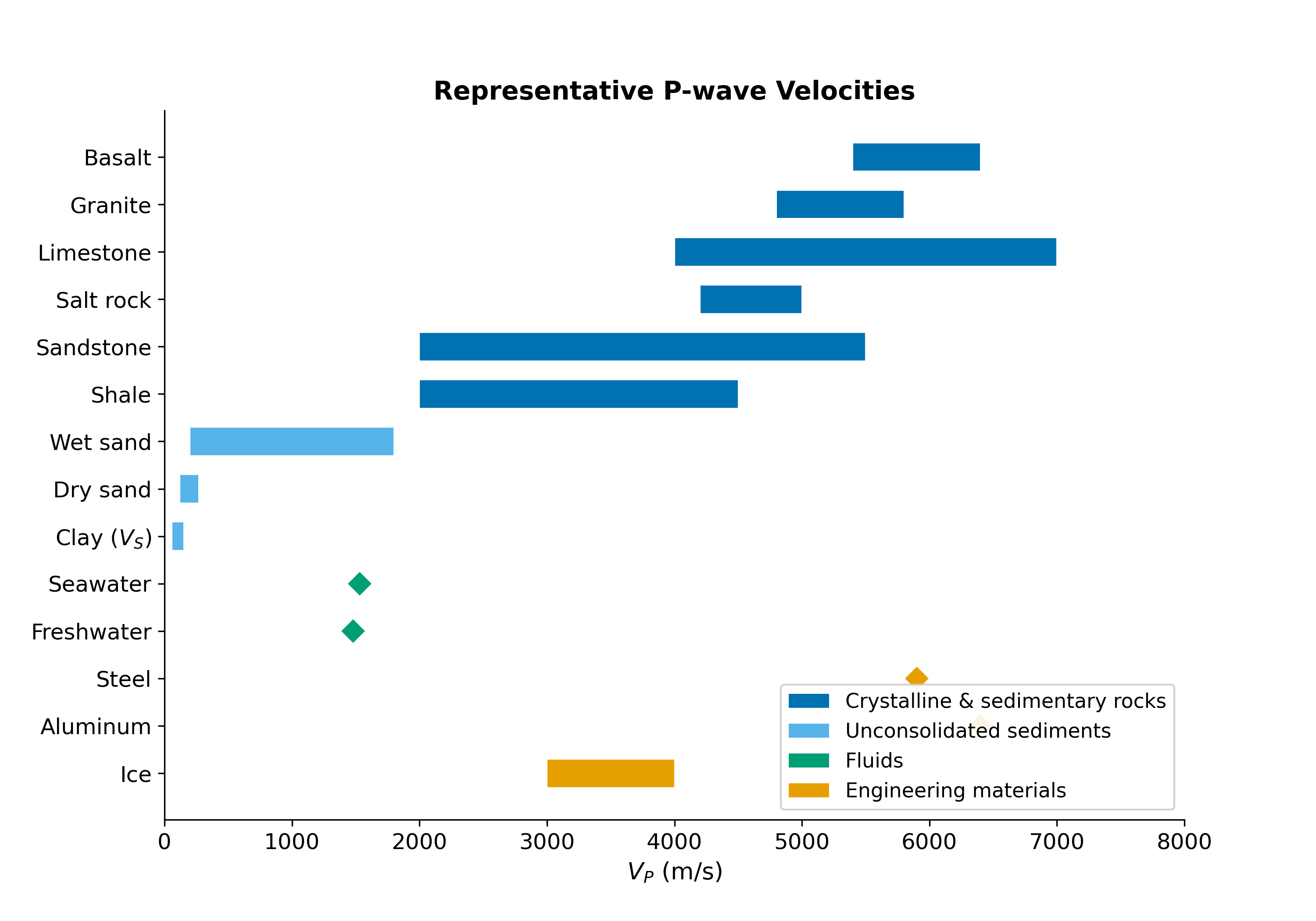

alt text: Horizontal bar chart with P-wave velocity on the horizontal axis from 0 to 8000 m/s. Dark blue bars for crystalline rocks (granite, basalt) range from 4800 to 6500 m/s. Sky blue bars for unconsolidated sediments (dry sand, clay) range from 60 to 2000 m/s. Green bars for fluids cluster near 1200 to 1540 m/s. Amber bars for engineering materials are near 5800 to 6400 m/s. A dotted vertical line marks 1480 m/s for water.
Figure 4.5. VPV_P spans ~100× from dry clay (60 m/s) to steel (~6000 m/s). Soft sediments can be 50× slower than basement rock. Python-generated — assets/scripts/fig_seismic_velocities.py

The VP/VSV_P/V_S Ratio as a Fluid Indicator

VPVS=λ+2μμ=2(1−ν)1−2ν\frac{V_P}{V_S} = \sqrt{\frac{\lambda+2\mu}{\mu}} = \sqrt{\frac{2(1-\nu)}{1-2\nu}}

Material state ν\nu VP/VSV_P/V_S
Typical crustal rock 0.25 3≈1.73\sqrt{3} \approx 1.73
Dry, cracked rock 0.10–0.20 1.45–1.60
Water-saturated sediment 0.45–0.49 3.0–10.0
Perfect fluid 0.50 ∞\infty

High VP/VSV_P/V_S → fluid saturation, magma, high pore pressure
Low VP/VSV_P/V_S → gas sand, dry fractured rock
Seattle example: Duwamish Valley VP/VS=7.95V_P/V_S = 7.95 (water-saturated alluvium) — why Pioneer Square shakes harder than Capitol Hill.

The S–P Time Method

P and S travel the same distance dd at speeds VP>VSV_P > V_S:

ΔtSP=tS−tP=d ⁣(1VS−1VP)⇒d=ΔtSP1VS−1VP\Delta t_{SP} = t_S - t_P = d\!\left(\frac{1}{V_S} - \frac{1}{V_P}\right) \qquad\Rightarrow\qquad d = \frac{\Delta t_{SP}}{\dfrac{1}{V_S} - \dfrac{1}{V_P}}

One seismometer + one clock = earthquake distance

Used in real time by PNSN and ShakeAlert

Worked Example: S–P Distance Estimate

tP=42.0t_P = 42.0 s, tS=74.8t_S = 74.8 s, VP=6.2V_P = 6.2 km/s, VP/VS=3V_P/V_S = \sqrt{3}

VS=6.23≈3.58 km/sΔtSP=74.8−42.0=32.8 sV_S = \frac{6.2}{\sqrt{3}} \approx 3.58 \text{ km/s} \qquad \Delta t_{SP} = 74.8 - 42.0 = 32.8 \text{ s}

d=32.813.58−16.2=32.80.279−0.161=32.80.118≈278 kmd = \frac{32.8}{\dfrac{1}{3.58} - \dfrac{1}{6.2}} = \frac{32.8}{0.279 - 0.161} = \frac{32.8}{0.118} \approx \mathbf{278 \text{ km}}

Seattle → Portland ≈ 280 km — consistent with a Cascades or Willamette Valley source.

What Each Seismometer Component Records

Component Most sensitive to
Vertical (Z) P-wave (compressional, vertical motion); Rayleigh wave (vertical ellipse component)
Horizontal N–S, E–W S-wave (transverse); Love wave (horizontal SH); Rayleigh wave (horizontal ellipse component)

A Love wave has no vertical component — a vertical-only seismometer misses it entirely.
This is why three-component instruments are essential for full wave-type identification.

ShakeAlert: P-waves Save Lives

The USGS ShakeAlert system detects fast-arriving P-waves to issue alerts before more damaging S-waves arrive.

For a Cascadia M9:

  • P-wave reaches coast: ~15 s after rupture
  • Strong S-wave shaking reaches Seattle: 60–90 s later

That 60–90 s warning window = time to stop trains, pause surgeries, move away from windows.

The physics: VP>VSV_P > V_S — always.

VS30V_{S30} and Building Codes

VS30V_{S30} = time-averaged shear velocity in the top 30 m of soil

Site Class VS30V_{S30} (m/s) Description
A > 1500 Hard rock
B 760–1500 Rock
C 360–760 Dense soil / soft rock
D 180–360 Stiff soil
E < 180 Soft soil

Design earthquake force for Class E is 3–5× larger than Class B.

In Seattle: Capitol Hill (glacial till, ~500 m/s) vs. Pioneer Square (artificial fill, ~180 m/s).

AI Literacy: Phase Pickers and Wave Physics (LO-7)

Deep learning models (PhaseNet, EQTransformer) pick P and S arrivals because of the physics from this lecture.

In-class prompt — try this now:

"A seismometer's vertical channel shows a sharp onset at 32 s; horizontal channels show a larger onset at 57 s. What wave types are these, and what can I estimate from the 25-second difference?"

Evaluate the AI response:

  • Does it identify vertical = P, horizontal = S? ✅
  • Does it apply the S–P formula correctly? ✅
  • Does it explain the physical reason for vertical vs. horizontal particle motion? ← key test
  • Does it give overconfident velocities without acknowledging regional variability? ← flag this

AI passes the formula test easily. The harder test is physical reasoning — not algebra.

Concept Check

  1. A seismometer records only P-wave arrivals — no S-wave. List three distinct physical reasons this could happen. (Think about source, path, and instrument.)

  2. A seismogram shows ΔtSP=20\Delta t_{SP} = 20 s and the station is 120 km from the earthquake. What does this imply about VP/VSV_P/V_S? Is this consistent with typical crustal rock?

  3. Why does an SH wave not convert to a P-wave when it reflects from a horizontal interface, while an SV wave can? Answer using particle motion geometry.

Summary

Wave Motion Speed Exists in
P Longitudinal (∥ ray) (λ+2μ)/ρ\sqrt{(\lambda+2\mu)/\rho} Solids + fluids
S Transverse (⊥ ray) μ/ρ\sqrt{\mu/\rho} Solids only
Rayleigh Retrograde ellipse (P+SV) ≈0.92 VS\approx 0.92\,V_S Any half-space
Love Horizontal SH VS1<VL<VS2V_{S1} < V_L < V_{S2} Layered only

VP>VS>VRV_P > V_S > V_R always. S-waves require μ≠0\mu \neq 0 (shear restoring force).

Next class: Lab 1 — Introduction to Python — computing VPV_P, VSV_S for different rock types

Lecture 6 (Apr 6): Wavefronts, Rays, and Snell's Law
