By the end of this lecture…

• [LO-5.1] Distinguish wavefronts from rays and their geometric relationship
• [LO-5.2] Apply Huygens' principle to construct wavefronts at velocity contrasts
• [LO-5.3] Derive Snell's law from wavefront geometry
• [LO-5.4] Define the ray parameter $p$ and explain why it is conserved
• [LO-5.5] Derive Snell's law from Fermat's principle of least time
• [LO-5.6] Explain why waves both reflect and refract at every interface
• [LO-5.7] Describe P–SV mode conversion and the generalized Snell's law
• [LO-5.8] Define acoustic impedance $Z = \rho V$ and compute normal-incidence $R$ and $T$

The puzzle: bent ray paths

An earthquake occurs offshore of Westport, WA, at 30 km depth in the subducting Juan de Fuca plate.

The P-wave arrives at Olympia from an unexpected direction — steeper than the straight line from source to station.

The wave path was bent by velocity contrasts in the crust and upper mantle.

Today: the law that governs this bending — and two ways to derive it.

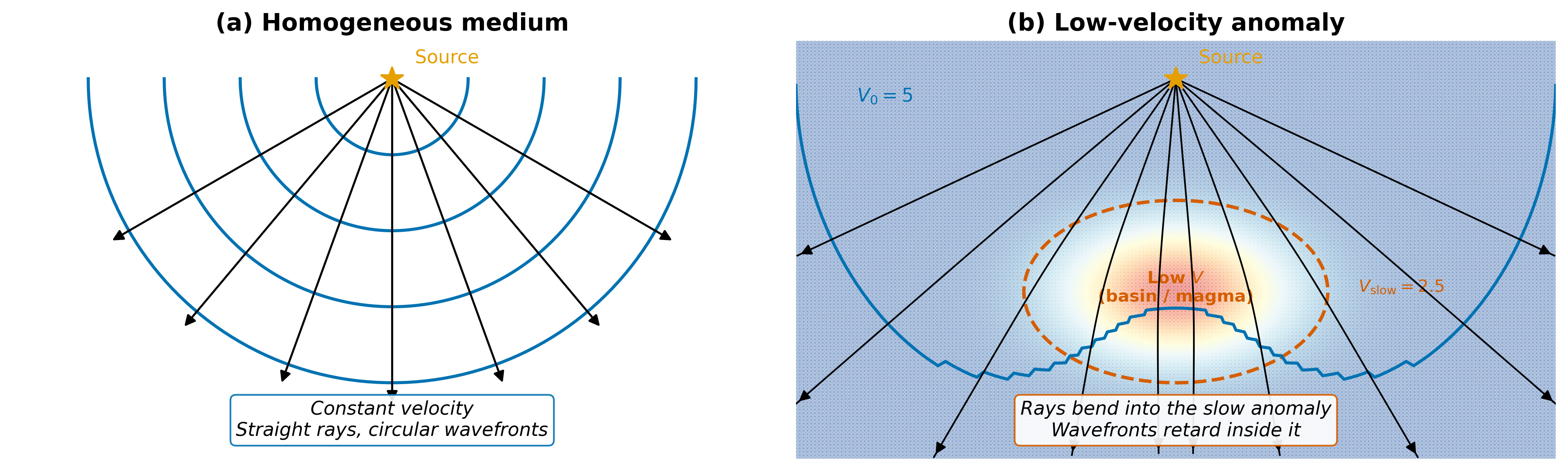

Wavefronts and rays

Wavefront = surface of constant phase (all points reached at the same time)

Ray = direction of energy propagation (⊥ to wavefront in isotropic media)

From a point source in a homogeneous medium:

• Wavefronts are spherical (3D) or circular (2D)
• Rays are straight lines radiating outward

At distances $\gg \lambda$: the wavefront looks locally flat → plane wave approximation

What happens in heterogeneous media?

Key insight: The fast side of the wavefront advances farther → wavefront tilts → rays curve toward slower regions.

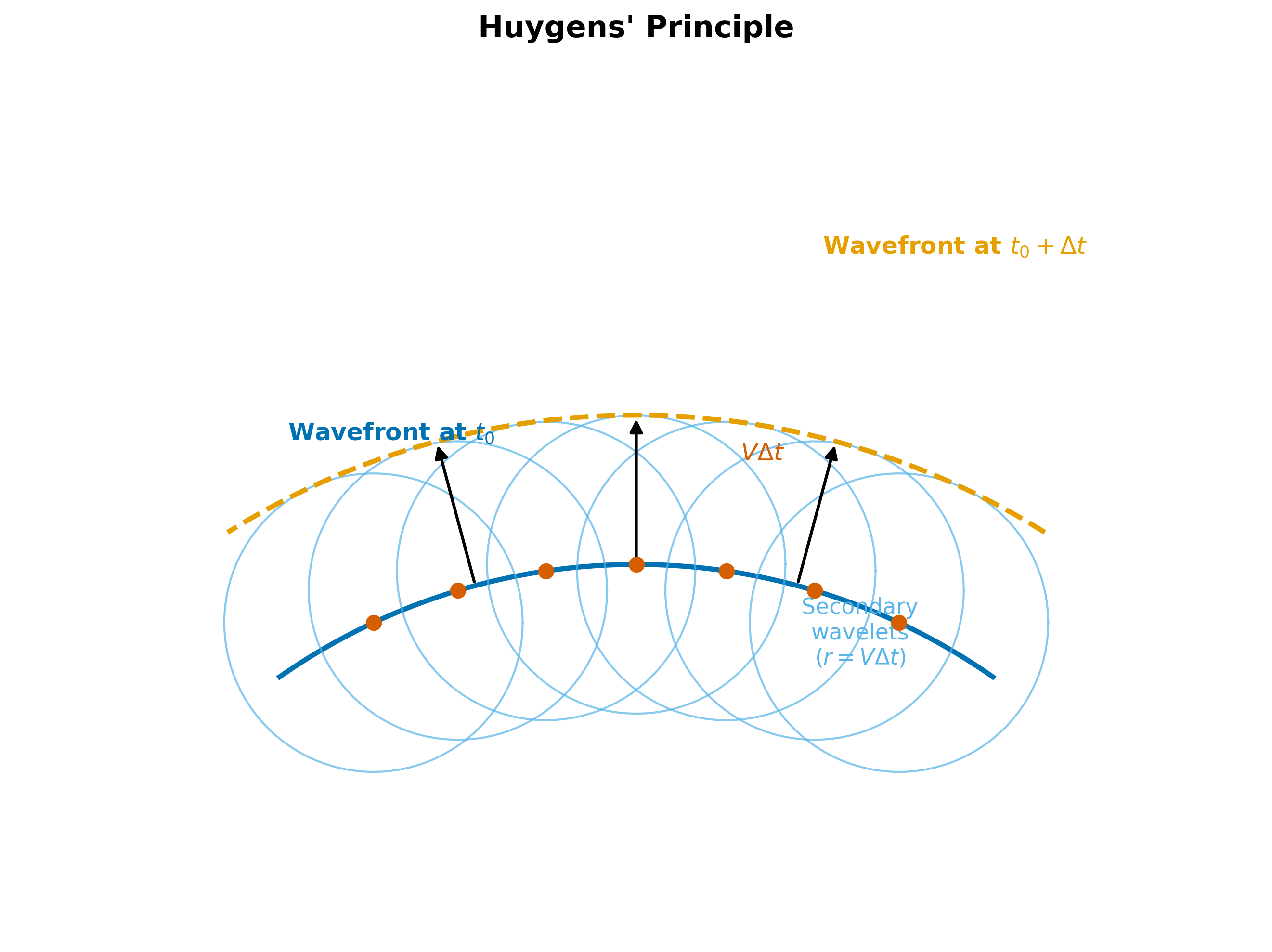

Huygens' principle (1678)

Every point on a wavefront acts as a secondary point source, emitting a spherical wavelet.

The new wavefront = envelope tangent to all secondary wavelets.

Not just a trick — it follows from the Green's function representation of the wave equation.

Huygens at a velocity contrast

At an interface between $V_1$ and $V_2 > V_1$:

• Wavelets in medium 2 are larger (radius $V_2 \Delta t > V_1 \Delta t$)
• The envelope tilts — wavefront changes direction
• The ray bends away from the normal into the faster medium

This is the physical mechanism behind Snell's law.

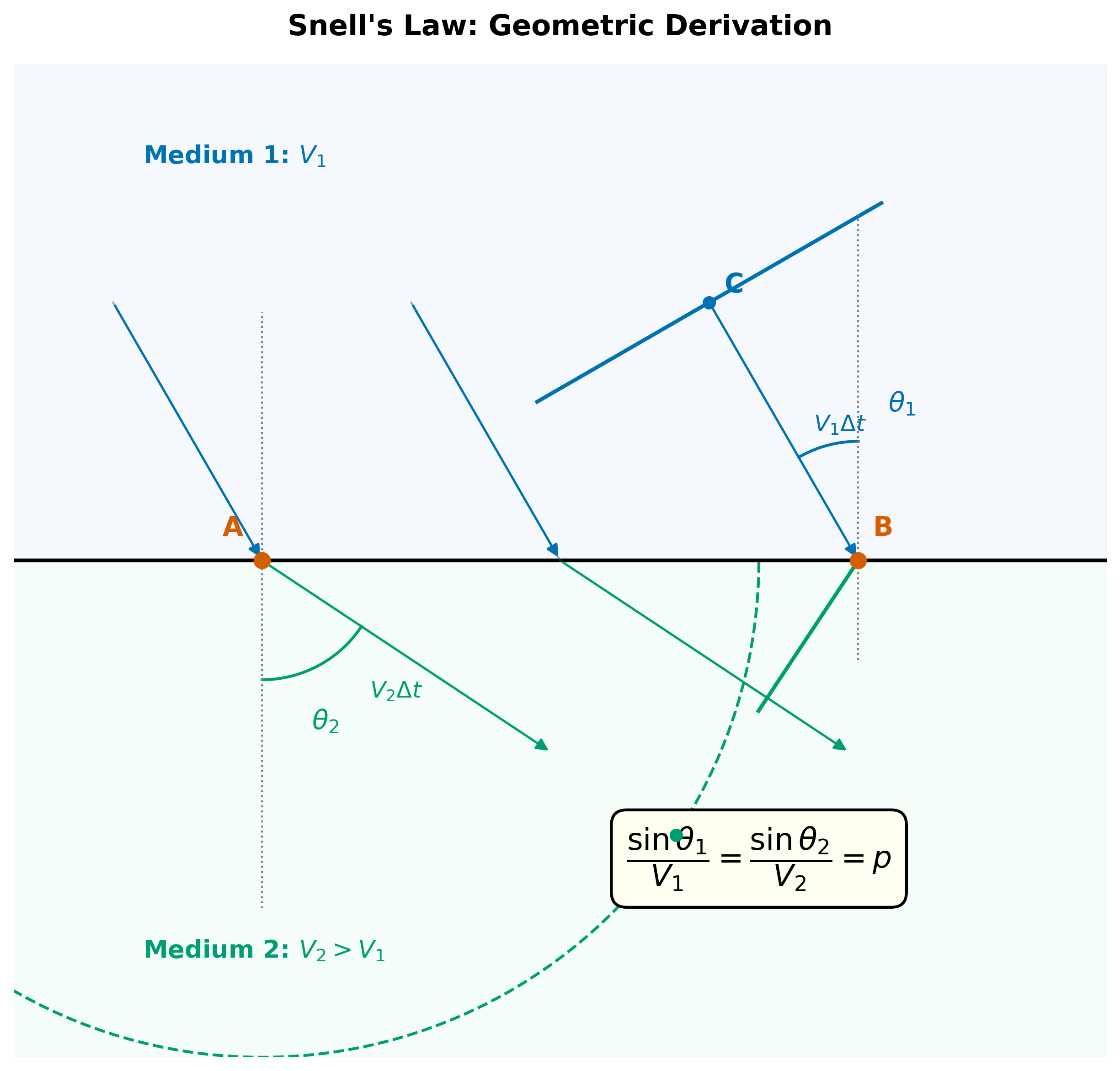

Deriving Snell's law: the geometry

Deriving Snell's law: the algebra

Two right triangles share hypotenuse $AB$:

$$\sin\theta_1 = \frac{BC}{AB} = \frac{V_1\,\Delta t}{AB}$$

$$\sin\theta_2 = \frac{AE}{AB} = \frac{V_2\,\Delta t}{AB}$$

Divide — $\Delta t$ and $AB$ cancel:

$$\boxed{\frac{\sin\theta_1}{V_1} = \frac{\sin\theta_2}{V_2} = p}$$

Snell's law: what it means

$$\frac{\sin\theta_1}{V_1} = \frac{\sin\theta_2}{V_2} = p$$

• $V_2 > V_1$: $\theta_2 > \theta_1$ → ray bends away from normal (into faster medium)
• $V_2 < V_1$: $\theta_2 < \theta_1$ → ray bends toward normal (into slower medium)
• Vertical incidence ($\theta_1 = 0$): no bending at all

Units: $[\sin\theta / V] = 1/(\text{m/s}) = \text{s/m}$ ✓

Identical to Snell's law in optics — with $V$ replacing $c/n$.

The ray parameter $p$

$$p = \frac{\sin\theta}{V} = \text{constant along the entire ray}$$

Physical meaning: horizontal component of the slowness vector $\mathbf{s} = \hat{n}/V$

Why conserved? Horizontal translational symmetry — properties vary only with depth. Same physics as conservation of horizontal momentum.

Through $N$ layers: $p = \sin\theta_1/V_1 = \sin\theta_2/V_2 = \cdots = \sin\theta_N/V_N$

Worked example: three-layer model

A ray with $p = 0.0002$ s/m passes through:

The ray cannot enter layer 3 — it is totally reflected.

Critical angle at layer 2→3: $\theta_c = \arcsin(4500/6000) = 48.6°$

The ray arrives at 64.2° > 48.6° → post-critical.

Fermat's principle of least time

The actual ray path between two points is the one with the shortest (stationary) travel time.

More general than Snell's law: works for curved interfaces, continuous gradients, and 3D media.

Snell's law is a consequence of Fermat's principle for flat interfaces.

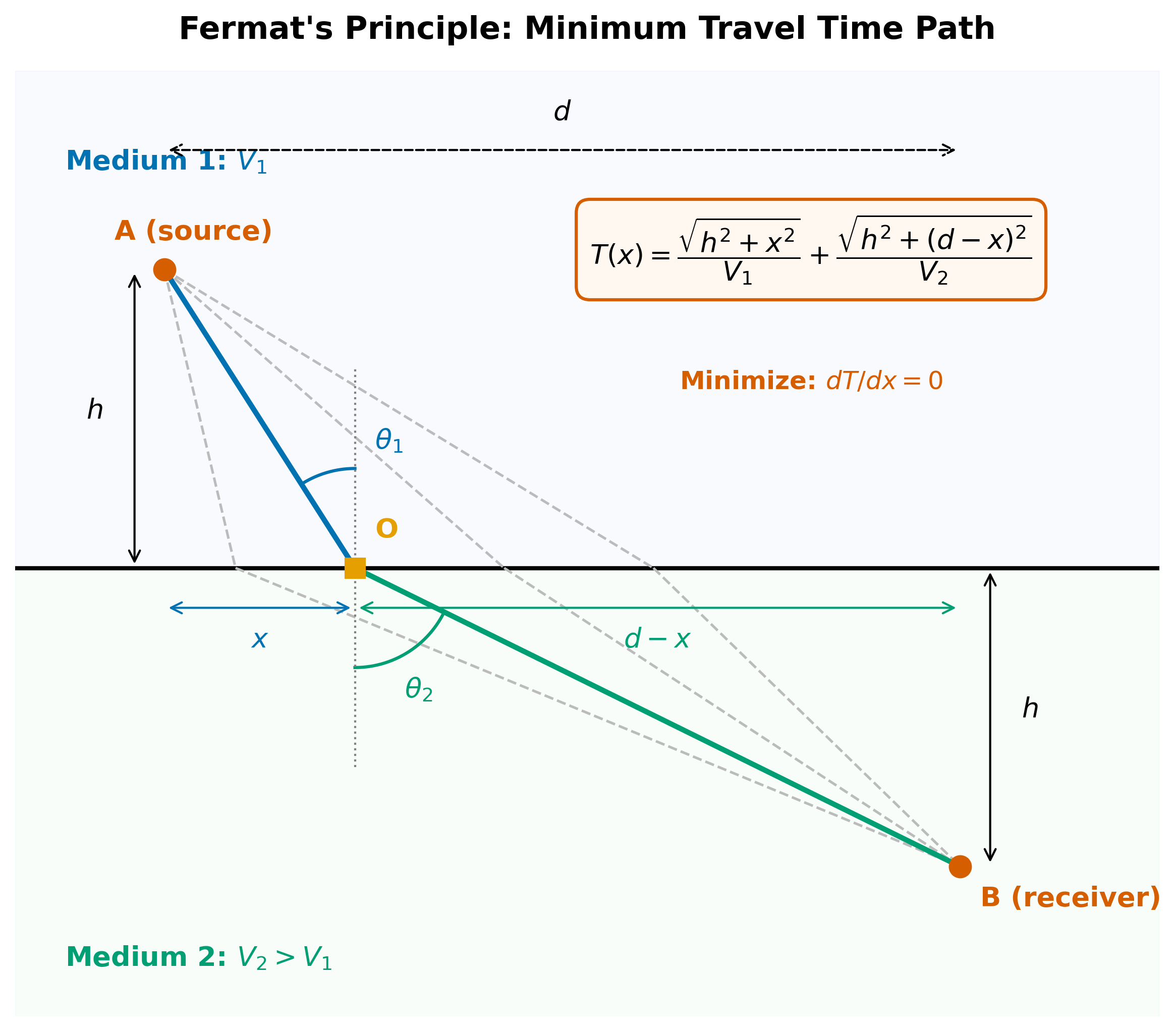

Fermat's principle: the geometry

Fermat's principle: the calculus

Travel time from $A$ to $B$ via crossing point $x$:

$$T(x) = \frac{\sqrt{h^2 + x^2}}{V_1} + \frac{\sqrt{h^2 + (d-x)^2}}{V_2}$$

Minimize: set $dT/dx = 0$:

$$\frac{x}{V_1\sqrt{h^2+x^2}} = \frac{d-x}{V_2\sqrt{h^2+(d-x)^2}}$$

Recognize: $\sin\theta_1 = x/\sqrt{h^2+x^2}$, $\sin\theta_2 = (d-x)/\sqrt{h^2+(d-x)^2}$

$$\boxed{\frac{\sin\theta_1}{V_1} = \frac{\sin\theta_2}{V_2}}$$

Snell's law — from calculus, not geometry.

Two derivations, one law

Both yield $p = \sin\theta/V = \text{constant}$.

The ray parameter $p$ is the fundamental invariant of ray theory.

Reflection: The Other Half of Snell's Law

At every velocity contrast, energy both refracts and reflects.

The reflected ray stays in medium 1. Snell's law with $V_1 = V_1$:

$$\frac{\sin\theta_i}{V_1} = \frac{\sin\theta_r}{V_1} \quad\Longrightarrow\quad \theta_r = \theta_i$$

The angle of reflection equals the angle of incidence.

This is symmetric about the normal — like a mirror.

Only when $Z_1 = Z_2$ does the reflected wave vanish entirely.

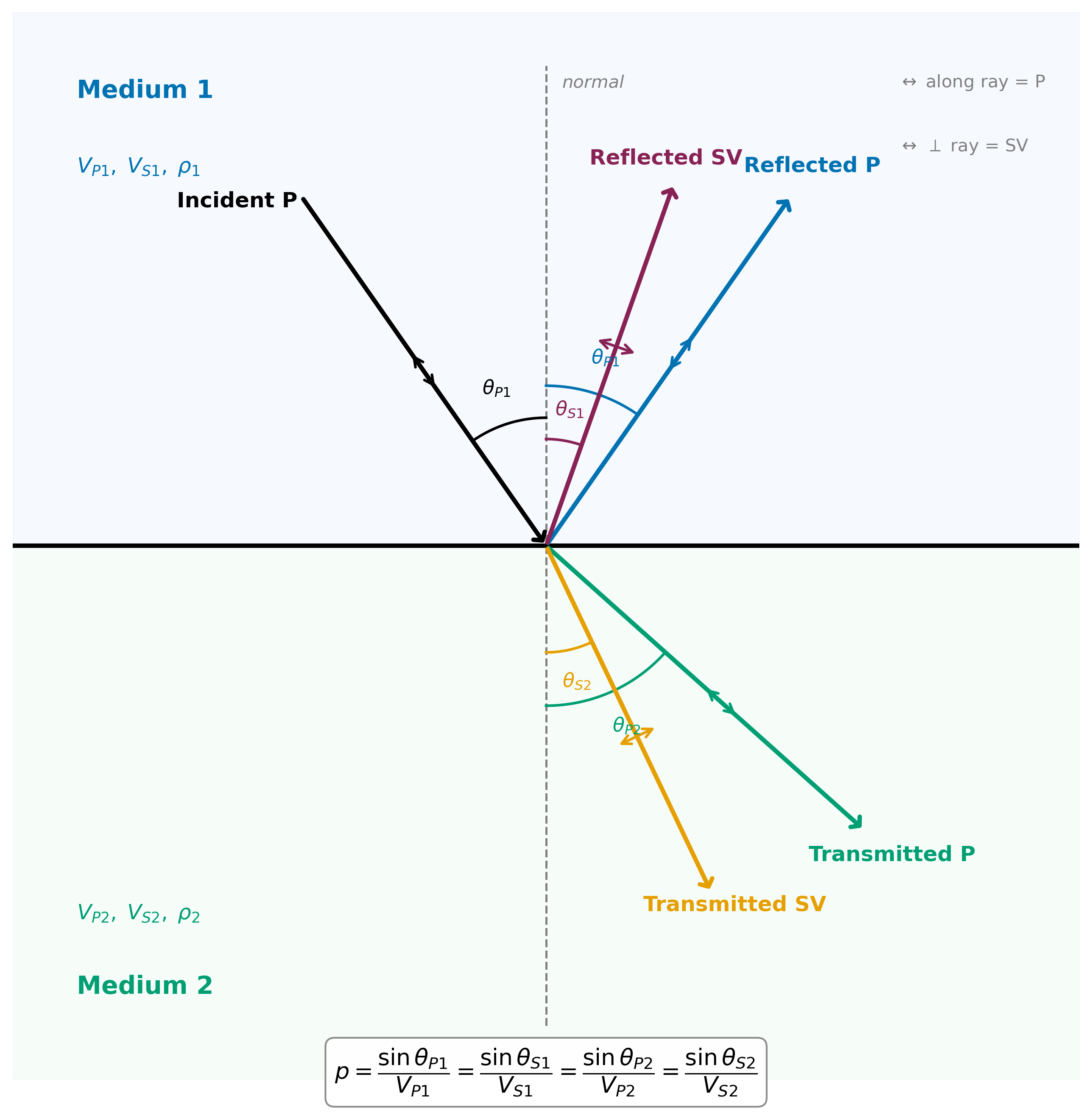

Mode Conversion: One P-Wave In, Four Waves Out

Since $V_S < V_P$: the converted S-wave is always steeper than the P-wave.

Note: SH waves do not convert — they are decoupled from P–SV.

How Much Reflects? Acoustic Impedance

Snell's law gives the angles. The amplitudes depend on acoustic impedance:

$$Z = \rho\, V \quad [\text{kg/(m}^2\text{·s)}]$$

At normal incidence ($\theta = 0$), the reflection and transmission coefficients:

$$R = \frac{Z_2 - Z_1}{Z_2 + Z_1}, \qquad T = \frac{2\,Z_1}{Z_2 + Z_1}$$

At oblique incidence → Zoeppritz equations (Lecture 8)

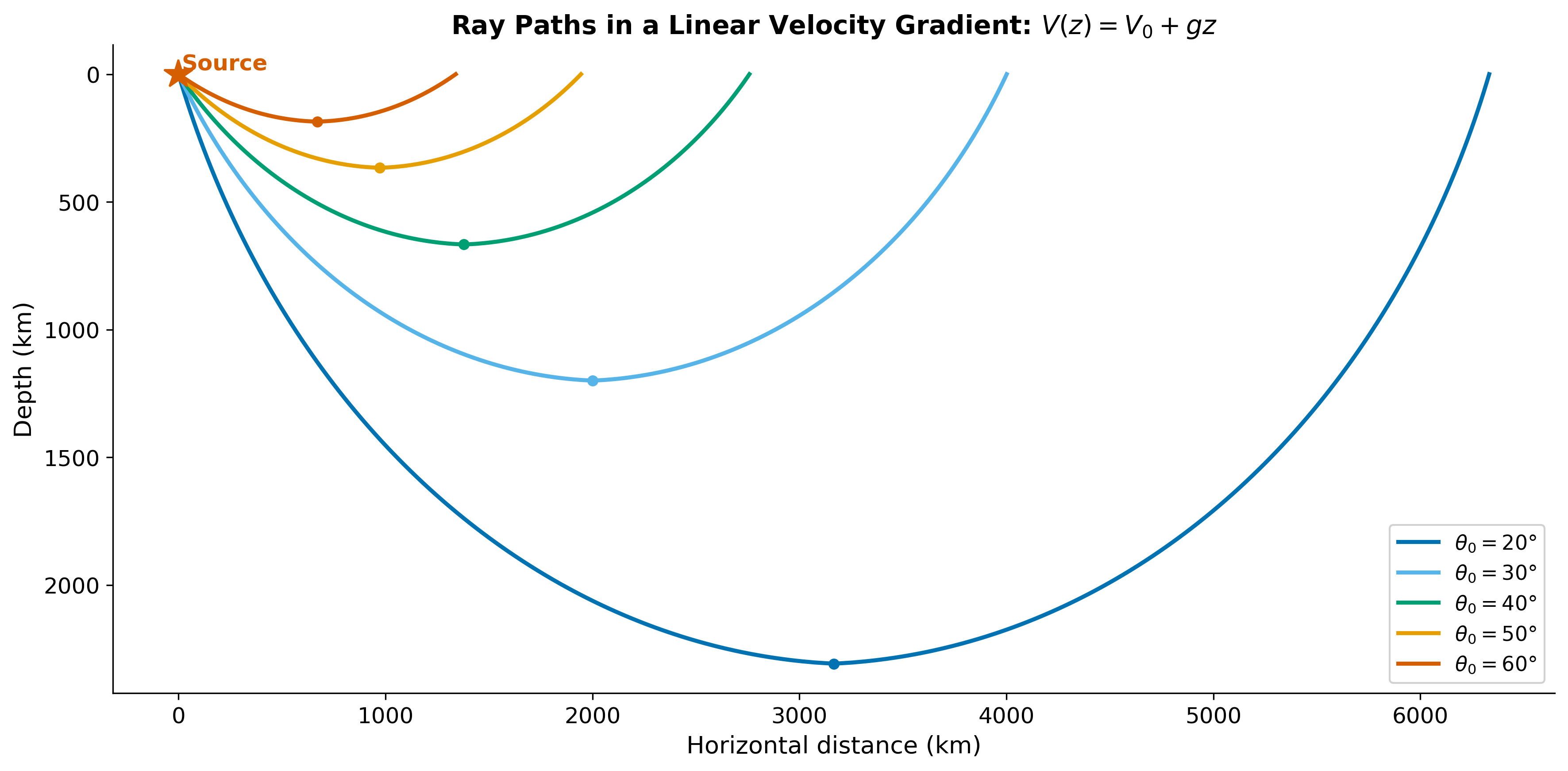

Rays in a velocity gradient

When $V$ increases with depth ($V = V(z)$), rays curve continuously:

$p = \sin\theta(z) / V(z) =$ constant → as $V$ increases, $\sin\theta$ increases → ray tilts toward horizontal

Turning depth: where $\sin\theta = 1$ (ray is horizontal), at $V(z_\text{turn}) = 1/p$

Rays in the real Earth

Steeper takeoff angle → smaller $p$ → deeper penetration → greater epicentral distance

This is why:

• Near stations record shallow rays (refracted through the crust)
• Distant stations record deep rays (through the mantle)
• Antipodal stations record rays that traverse the core

The relationship $p(\Delta)$ — ray parameter vs. distance — is the key to inverting Earth structure from travel times.

The optical analogy

A mirage on a hot road = a seismic turning ray in a velocity gradient.

Same physics, different scale.

Critical angle and total reflection

When $V_2 > V_1$, increasing $\theta_i$ eventually makes $\sin\theta_2 = 1$ — the transmitted ray grazes the interface.

$$\theta_c = \arcsin\!\left(\frac{V_1}{V_2}\right)$$

For $\theta > \theta_c$: total reflection — no transmitted energy, $|R| = 1$

At exactly $\theta_c$: the wave along the interface radiates a head wave back into medium 1 at angle $\theta_c$.

Head waves travel at $V_2$ → the foundation of seismic refraction (Lectures 6–7).

Why it matters: earthquake location

Every PNSN earthquake location depends on:

1. A velocity model $V(z)$ for the PNW crust and mantle
2. Snell's law applied at every layer boundary to trace rays
3. Travel times computed from ray paths

Errors in the velocity model → errors in location (5–10 km in Cascadia with 1D models).

The M9 Project uses 3D ray tracing through the Community Velocity Model to simulate ground motion for a future Cascadia M9.

AI as a reasoning partner

Try this prompt:

"Derive Snell's law from Fermat's principle. Start from $T(x) = \sqrt{h^2+x^2}/V_1 + \sqrt{h^2+(d-x)^2}/V_2$, take $dT/dx$, set to zero, and show every step."

Evaluate the AI's response against today's derivation:

• Does it correctly differentiate both terms?
• Does it recognize $\sin\theta = x/\sqrt{h^2+x^2}$ from the geometry?
• Common error: dropping the negative sign in $(d-x)$

Concept Check

1. A ray enters sandstone ($V = 3000$ m/s) from sediment ($V = 1500$ m/s) at $\theta_1 = 20°$. Find $\theta_2$. Is the ray bending toward or away from the normal?

2. Sketch wavefronts for a wave propagating downward through a medium where $V$ increases linearly with depth. Are they flat, curved up, or curved down?

3. A ray with $p = 1.5 \times 10^{-4}$ s/m enters a medium where $V$ increases from 4000 to 8000 m/s. At what velocity does the ray turn? What is the takeoff angle at the surface?

Next time

Lecture 6: Seismic Refraction I

The head wave we just introduced is the key observable. Lecture 6 derives the travel-time equations for head waves and shows how to invert slopes and intercepts for layer velocity and thickness — the method Mohorovičić used to discover the crust–mantle boundary.

Direct waves · head waves · travel-time curves · crossover distance · the Moho

Discussion (Wed): Radar eyes on ice — applying today's physics to GPR
