Lecture 20 — Gravity Anomalies & Subsurface Modeling

By the end of this lecture, you should be able to…

• [LO-20.1] Compute $\Delta g(x)$ above buried sphere, cylinder, slab, fault offset.
• [LO-20.2] Apply the half-maximum rule to estimate depth from a profile.
• [LO-20.3] Distinguish regional vs. residual anomalies.
• [LO-20.4] Use $\partial g/\partial x$ to locate geological edges and faults.
• [LO-20.5] Set up a forward-modelling workflow and articulate inverse-problem non-uniqueness.

Course objectives addressed: LO-1, LO-2, LO-3, LO-4, LO-5.

Where we are

Lecture 19 → cleaned-up complete Bouguer anomaly $\Delta g_{CB}$.
By construction, $\Delta g_{CB}$ records lateral density variations near the survey.

This lecture: how do we read it?

Two questions:

• Forward — given a subsurface, predict the profile.
• Inverse — given the profile, recover the subsurface.

The vertical pull from a buried mass element

$$dg_{z} = \frac{G \, \rho \, z' \, dV}{(x^{2}+y^{2}+z'^{\,2})^{3/2}}$$

Three properties of this kernel set everything that follows:

• Linear in density → bodies superpose.
• Only density contrast $\Delta\rho$ matters (background subtracted in Lecture 19).
• The kernel is smooth → non-unique by Green's third identity.

The buried sphere — canonical formula

$$\Delta g(x) = \frac{G \, M \, z}{(x^{2}+z^{2})^{3/2}}, \qquad M = \frac{4}{3}\pi R^{3} \, \Delta\rho$$

• Peak: $g_{\max} = G M / z^{2}$ at $x=0$.
• Half-max width: $x_{1/2} \approx 0.766\, z$.

→ Half-max rule: $z = x_{1/2} / 0.766$ recovers depth from the profile width.

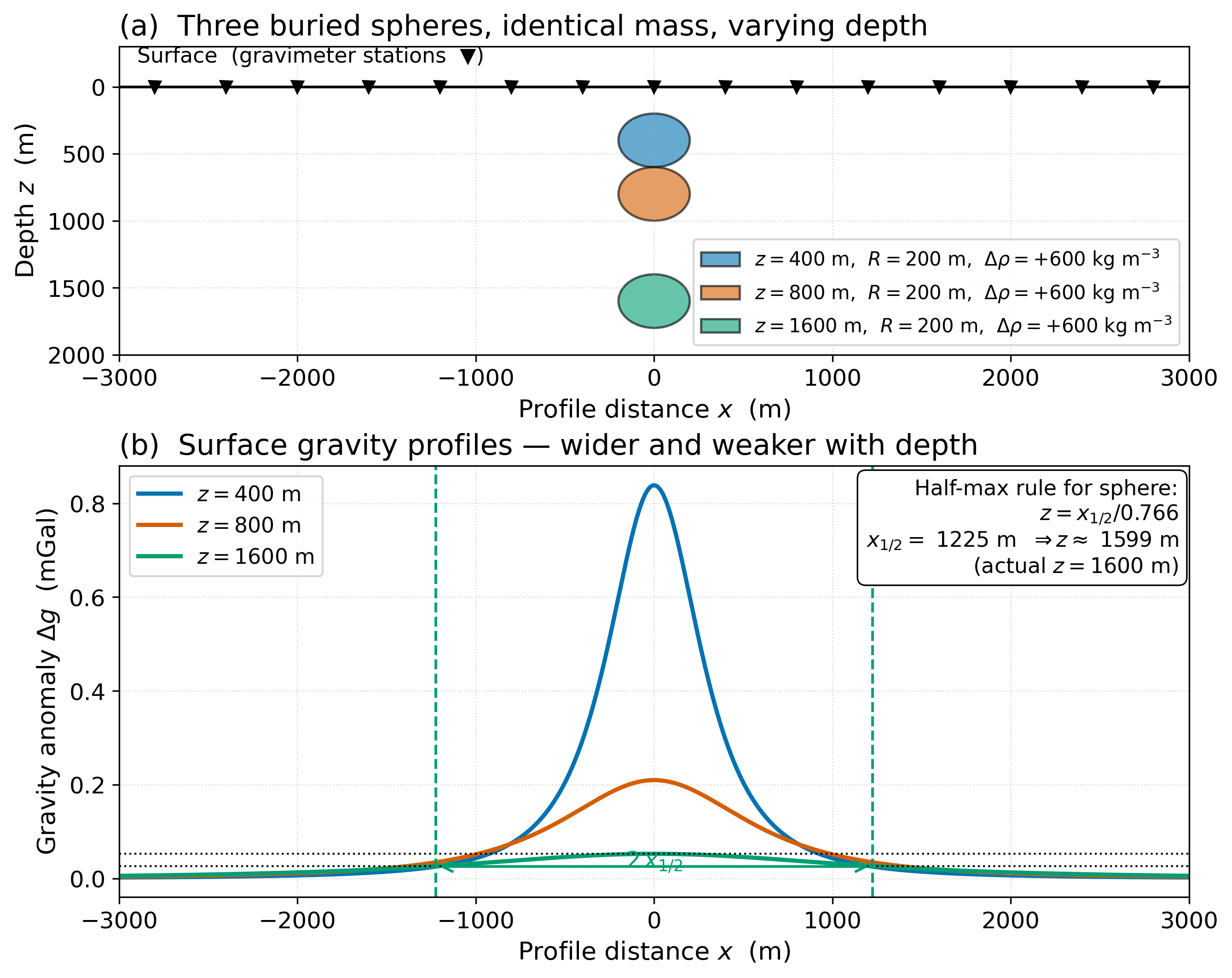

Half-max rule in action

Three identical-mass spheres at $z = 400, 800, 1600$ m → wider, weaker profiles with depth. Half-max rule recovers $z=1599$ m for actual $z=1600$ m.

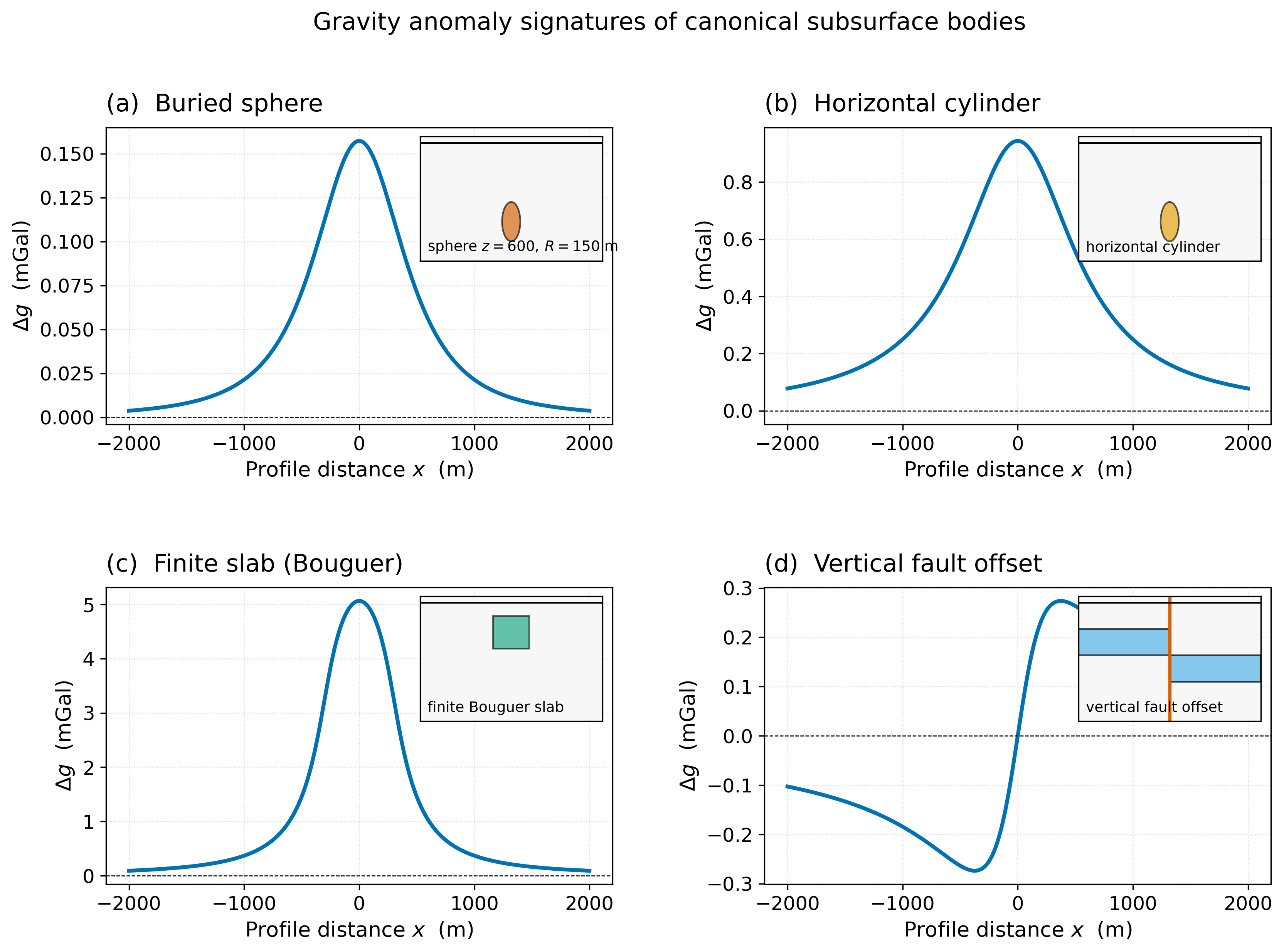

The other canonical shapes

Each geometry has its own signature in the surface profile. Recognise the shape → apply the right formula.

Closed-form formulas to memorise

Horizontal cylinder (axis ⊥ profile):

$$\Delta g(x) = \frac{2 G \lambda z}{x^{2}+z^{2}}, \quad \lambda = \pi R^{2} \Delta\rho, \quad x_{1/2} = z.$$

Infinite slab (Bouguer):

$$\Delta g = 2\pi G \Delta\rho \, h.$$

Vertical fault offset: antisymmetric step, steepest gradient over the fault plane.

→ Three numbers carry the information: $g_{\max}$, $x_{1/2}$, and $\partial g/\partial x|_{\max}$.

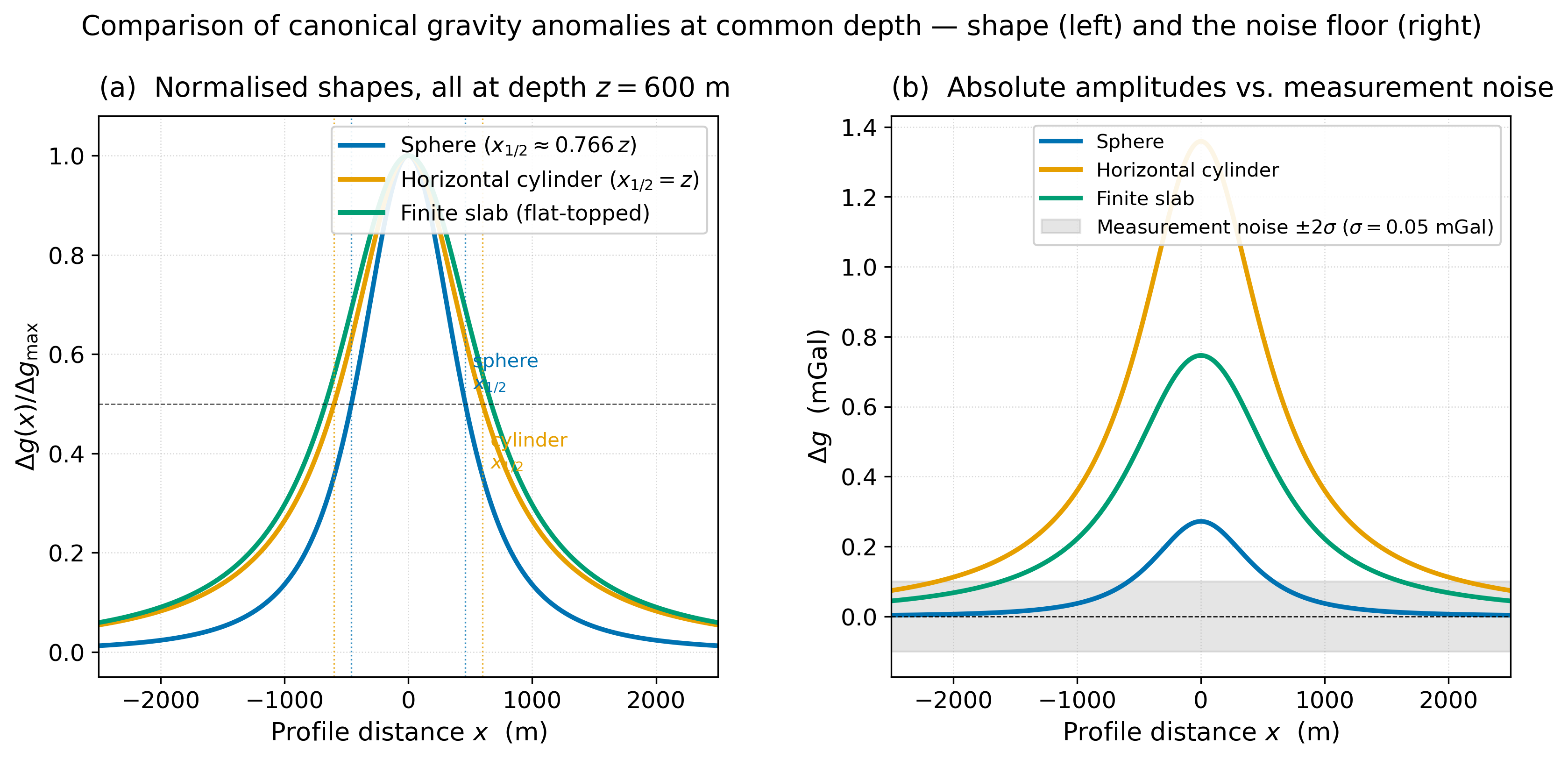

Three shapes, one depth — what is actually different?

• (a) Shapes: sphere falls off fastest ($1/r^{3}$), cylinder slowest ($1/r^{2}$), slab is flat-topped.
• (b) Amplitudes differ by 5× at the same depth and density contrast.
• The shape assumption matters more for density/mass than for the half-max depth.

Measurement errors — the field-survey noise floor

Typical land-survey noise budget (1σ, combined in quadrature):

Result: $\sigma_{\Delta g} \approx 0.05{-}0.1$ mGal for a well-run survey.
Absolute meters (FG-5) reach $< 0.005$ mGal at single stations.

Noise floor → depth uncertainty

The half-max rule propagates measurement noise into a depth error:

$$\frac{\sigma_{z}}{z} \;\approx\; 1.2 \, \frac{\sigma_{\Delta g}}{g_{\max}} \quad \text{(sphere)}$$

→ Doubling depth quarters the sphere's peak; the noise floor doesn't budge.

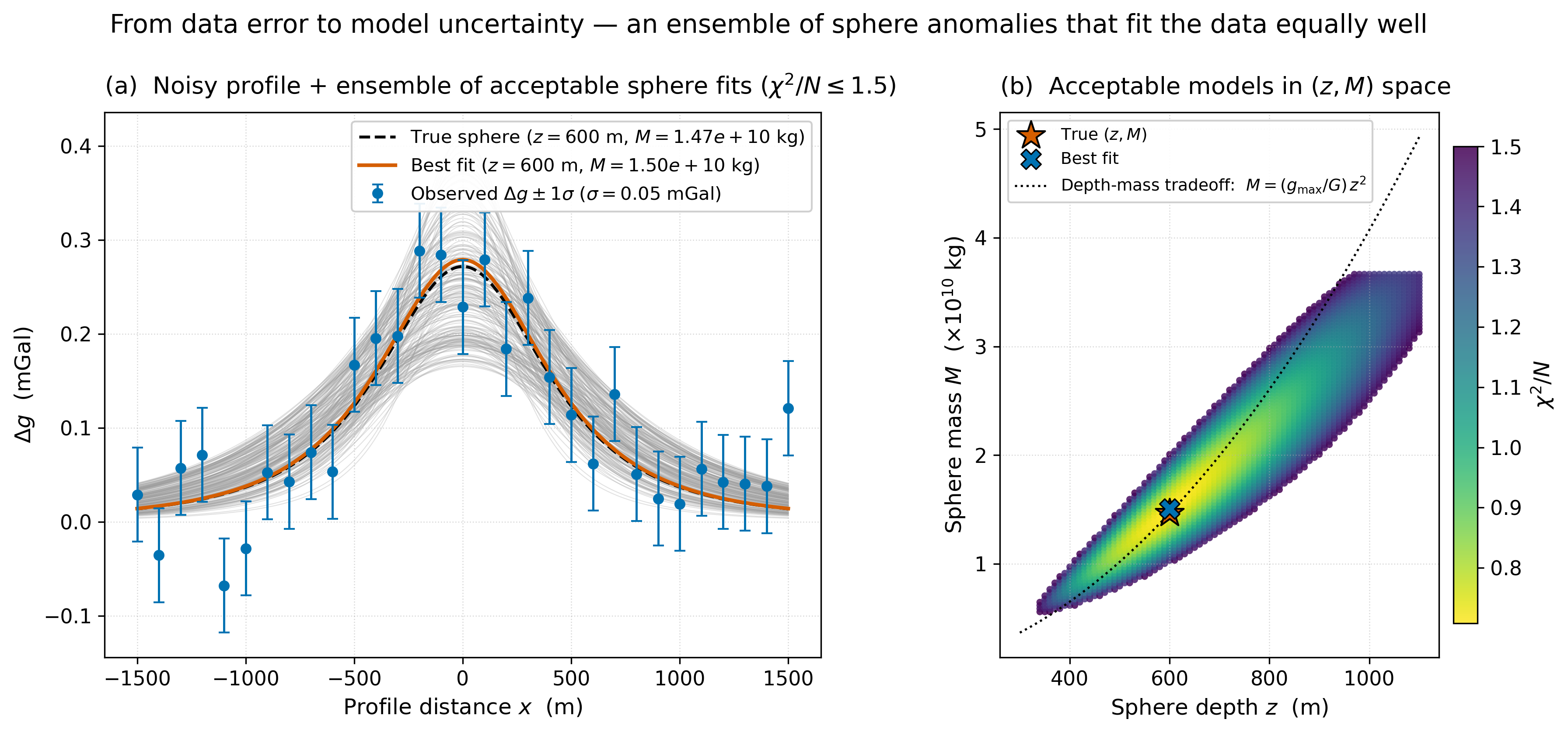

From data error to model uncertainty

Step 1 – generate a noisy profile (31 stations, $\sigma=0.05$ mGal).
Step 2 – score every $(z, M)$ on a grid by
$\chi^{2}/N = \tfrac{1}{N}\sum_i \big((\Delta g_i^{\text{obs}} - \Delta g(x_i; z, M))/\sigma\big)^{2}$.
Step 3 – keep all models with $\chi^{2}/N \leq 1.5$. The answer is the cloud.

The cloud has shape — it is not a disc

• The accepted $(z, M)$ ensemble traces $M \propto z^{2}$ — the depth-mass tradeoff predicted by $g_{\max} = GM/z^{2}$.
• A single best-fit point is one member of a family; the family is what we report.
• $\sigma_z$ and $\sigma_M$ are correlated, not independent. Report the joint cloud (or its covariance), not two separate $\pm$ ranges.

Survey-design corollary: stations far from the source narrow the cloud along the tradeoff direction. Wide, sparse profiles beat dense ones for deep targets.

Forward to the rest of the course: this is the entry point to Bayesian inversion — prior × likelihood = posterior. Same logic, scaled up, drives MCMC and ensemble Kalman methods used in tomography (L12) and geodynamics (L25).

Density contrast — not absolute density

$\Delta g$ depends on $\Delta \rho$, not on $\rho$ itself.

A salt body in shale ($\Delta\rho < 0$) → negative anomaly.
A serpentinite body in basalt ($\Delta\rho > 0$) → positive anomaly.

A body whose density matches its surroundings is invisible, regardless of size.

Regional vs. residual

The wavelength of an anomaly scales with depth to source.

• Long-wavelength → regional, deep sources, tectonic-scale geodynamics.
• Short-wavelength → residual, near-surface bodies — what most surveys want.

Standard practice: fit a smooth surface to the regional, subtract it.

→ The choice of regional surface is a modelling decision with subjective elements. Document it.

Horizontal gradient — finding the edges

$\partial \Delta g / \partial x$ peaks at vertical density contrasts.

• Over a fault → gradient peaks above the fault plane.
• Over a basin edge → gradient peaks at the wall.
• Long-wavelength regional trends → suppressed by differentiation.

Map-view gradient images are routine in modern interpretation: they pull out structural lineaments that are not obvious in the underlying anomaly map.

The forward problem is easy

Given a model, compute $\Delta g$:

• Closed forms for sphere, cylinder, slab, polygon.
• Talwani algorithm (1959): arbitrary 2-D polygon → analytic gravity.
• 3-D bodies: discretise, integrate.

Lab 5 implements all of this in Python. Vary parameters, build intuition.

The inverse problem is hard — three reasons

1. Geometry: given a known shape, half-max rule gives depth — works at the qualitative level.
2. Non-uniqueness: many density distributions yield the same surface field. Mathematical, not algorithmic.
3. Total mass: the only thing uniquely determined by the surface field is $\int \Delta\rho \, dV$ — and only if the survey extends past the body.

Increasing depth must be compensated by…

…increasing density contrast and/or increasing volume.

Without independent constraints, these tradeoffs cannot be separated.

→ Combine gravity with seismic (constraints on geometry) or with rock physics (constraints on density). Joint interpretation is the rule, not the exception.

Worked example — the salt dome

Observation: near-circular Bouguer low. $g_{\max} = -16$ mGal, $x_{1/2} \approx 3700$ m. Salt $\rho \sim 2.20$, shale $\rho \sim 2.40$ g cm⁻³.

Half-max rule: $z = 3700 / 0.766 \approx 4830$ m.
Mass: $M = |g_{\max}| z^{2} / G \approx 5.6 \times 10^{13}$ kg.
Radius: $R = (3M / 4\pi |\Delta\rho|)^{1/3} \approx 3800$ m.
Top of salt: $z - R \approx 1000$ m.

→ A first-order interpretation. Seismic reflection over the same body almost always tightens the depth-to-top by 2× or more.

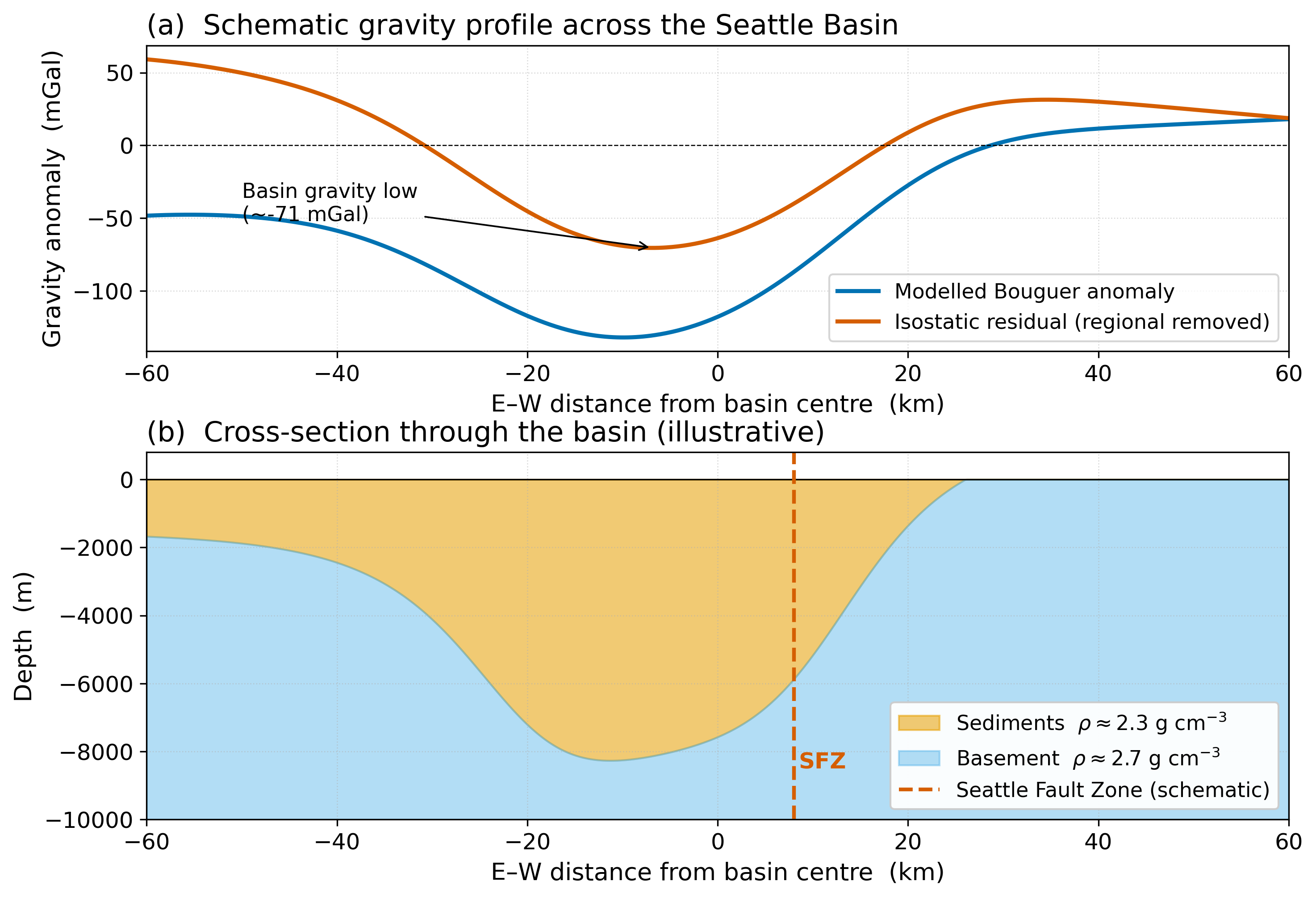

A PNW worked example — Seattle Basin

A 60-mGal isostatic-residual low across the basin. Width → depth (~7–8 km). Asymmetry → Seattle Fault Zone offset.

Hidden in the residual — earthquake hazard

The Seattle Basin's low-density fill amplifies long-period ground motion 3–5× for Cascadia M9 earthquakes.

The basin's gravity-derived geometry is the input to ground-motion simulation codes used in the regional PSHA.

→ Gravity interpretation feeds directly into building-code design ground motions.

USGS OFR 2018-1149 (Frankel et al., public domain) is the open-access entry point.

Course connections

• Backward to L19: Bouguer reduction provides the input.
• Backward to L10–12: forward/inverse problems, resolution-vs-uniqueness.
• Forward to L21: long-wavelength Bouguer = isostatic compensation.
• Forward to L24: same forward/inverse logic for magnetic anomalies.

Research horizon

• USGS open data: full national gravity archive (public domain, https://mrdata.usgs.gov/services/gravity).
• Brocher et al. (2017): PNW crustal-block model, open access via AGU.
• Linsel et al. (2023): deep-learning fault-edge detection, arXiv preprint.
• Steinberger et al. (2022): long-wavelength gravity contains flow information, not just density.

AI Literacy — AI Epistemics

Test prompt: "Derive the gravity anomaly above a buried sphere. Give the half-width-to-depth relation and explain why the result is non-unique."

A good response:

• Derives equation in 3 steps.
• Recovers $x_{1/2} \approx 0.766\, z$.
• Articulates depth-density tradeoff.

A poor response:

• Plausible-looking formula with subtle errors (missing $z$, wrong exponent).
• Confident but unverifiable claim.

→ Trust by verification, not by appearance. Check dimensional consistency, run the formula on a known case, compare half-width-to-depth ratio against the textbook value.

Concept Check

1. Two anomalies have identical peak amplitude ($+5$ mGal) but $x_{1/2,\text{A}} = 200$ m and $x_{1/2,\text{B}} = 2000$ m. Estimate the depth and source mass of each.
2. A profile across a vertical fault shows an antisymmetric step of 4 mGal, with $|\partial g/\partial x|_{\max} = 0.5$ mGal/km. What does the gradient tell you that the step amplitude does not?
3. You apply two regional polynomials (1st vs 2nd order) and the residual half-width changes by 30%, peak by 15%. What does this say about the reliability of the depth and density estimates?
